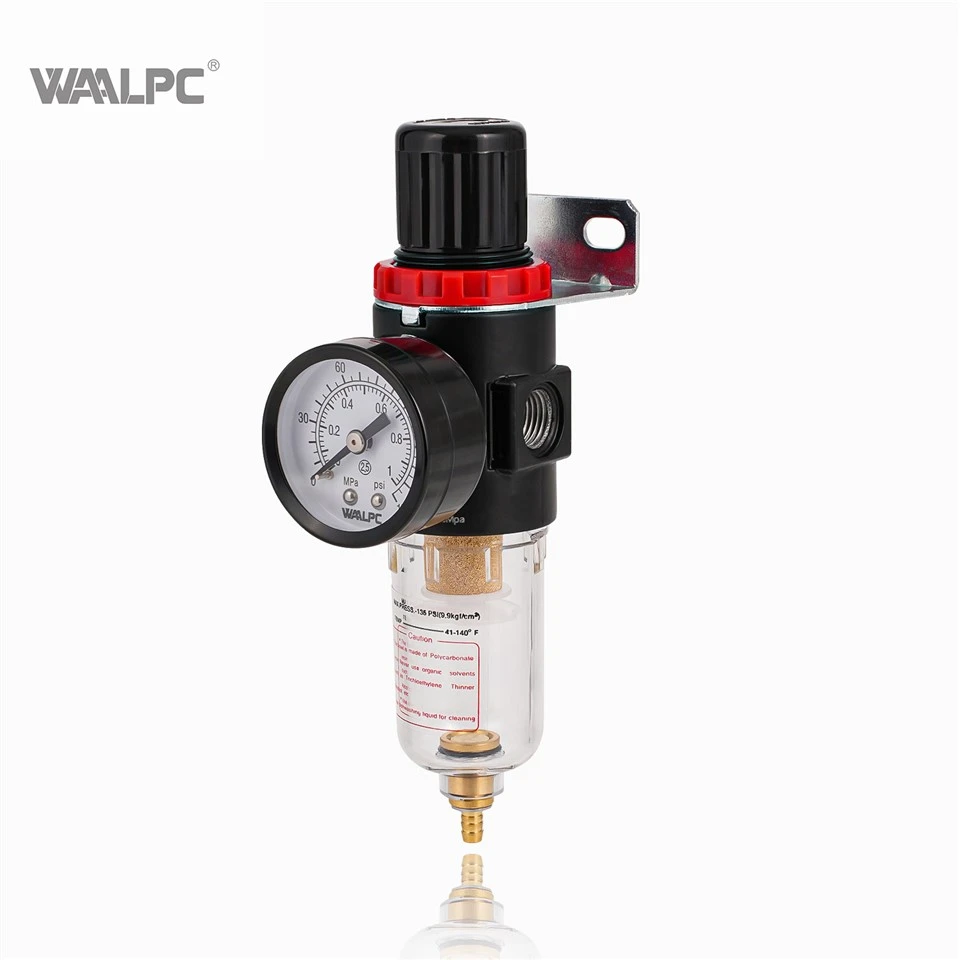

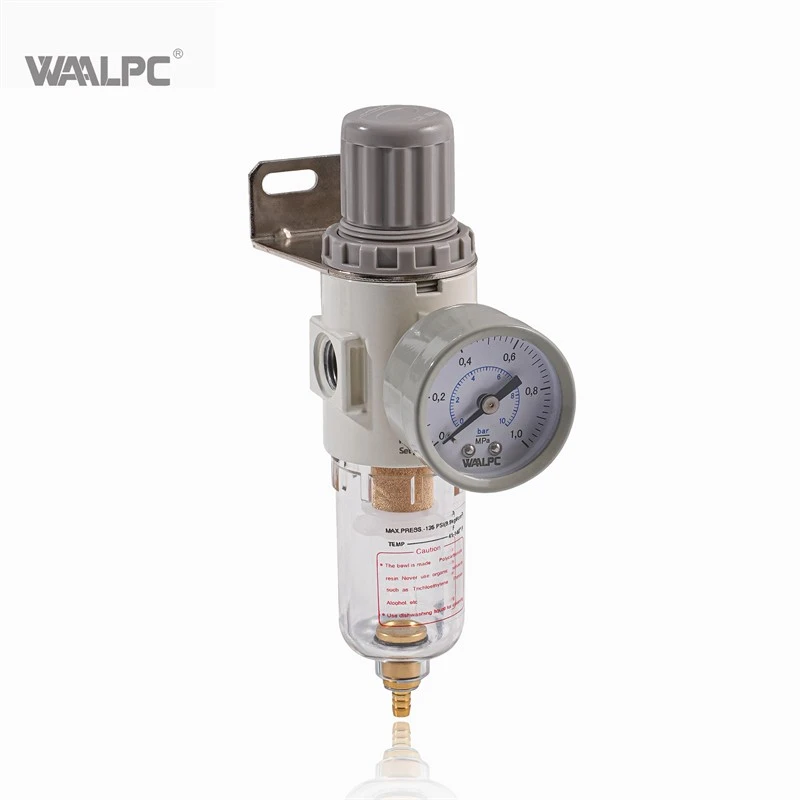

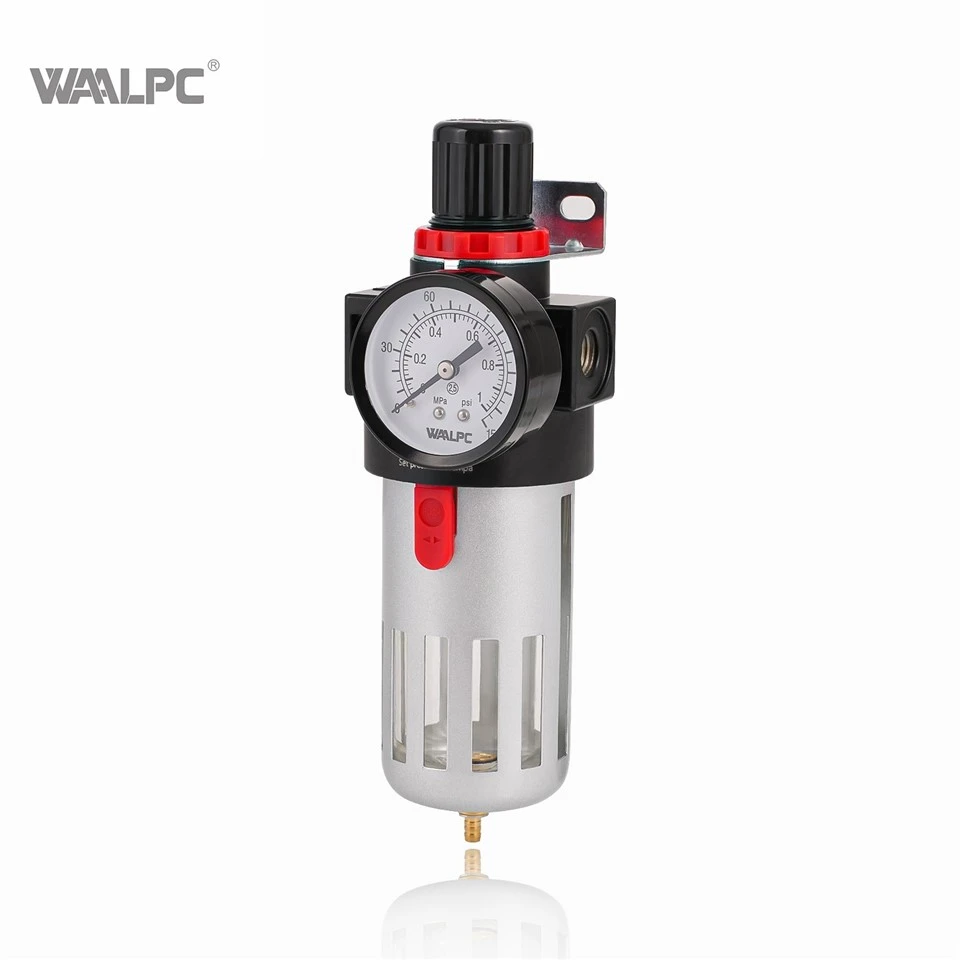

Hangzhou Evershine Pneumatic Import & Export Co., Ltd. is one of the leading manufacturers and suppliers of pneumatic filter regulator in China. With abundant experience, we are committed to providing high quality pneumatic components to global clients. Welcome to wholesale custom made pneumatic filter regulator from our factory. Also, OEM service is available.

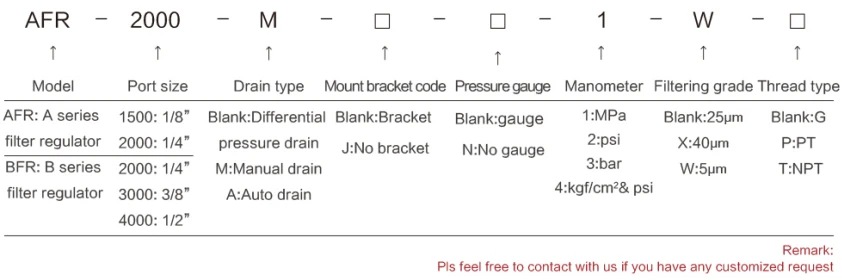

Ordering Code
Feature
1. Light and compact structure, easy to install and use

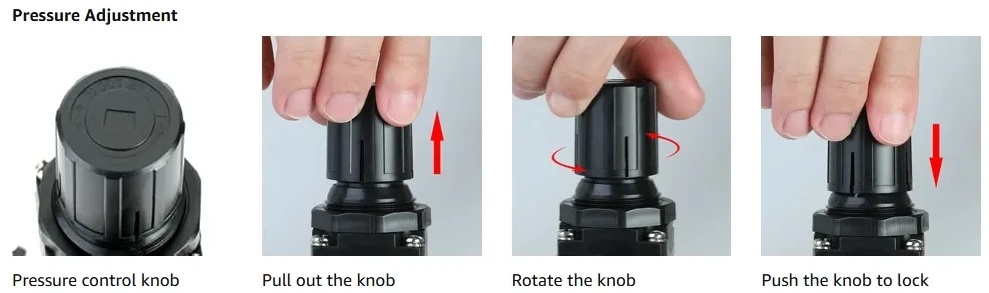

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference
3. Small pressure loss, high efficiency of water separation
4.Transparent housing,the amount of oil dripping can be observed directly
Data Sheet
|
Type-name |
Air Filter Regulator |
|||||
|
Model |
AFR1500 |
AFR2000 |
BFR2000 |
BFR3000 |
BFR4000 |
|
|
Working medium |
Compressed air |
|||||
|
Port size |
G1/8, G1/4, G3/8, G1/2 |
|||||
|
Grade of Filtration |
5μm, 25μm, 40μm |
|||||
|
Pressure Regulating Range |
0.05~0.85MPa |
|||||
|
Max.Operating Pressure |
0.95MPa |
|||||
|
Pressure Resistance |
1.5MPa |
|||||
|
Operating Temperature Range |
5~60℃ |
|||||
|
Filter Cup Capacity |
A Series 15CC |
B Series 60CC |
||||
|
Material |
Housing: aluminium die-cast molding; Container Cup: PE; Protective Cover: iron |
|||||

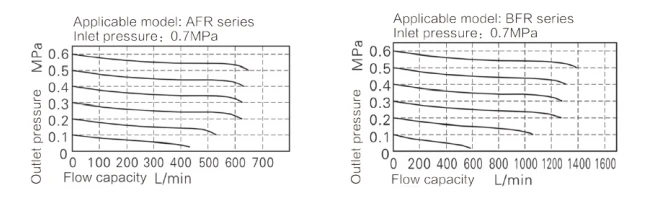

Flow Diagram

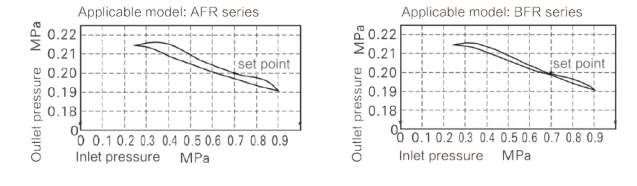

Pressure Diagram

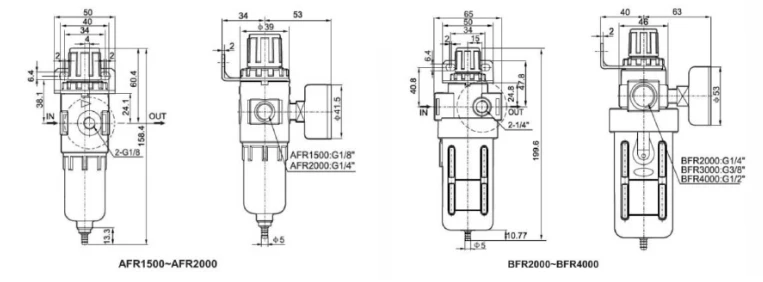

Overalldimension&structure
Video
FAQ

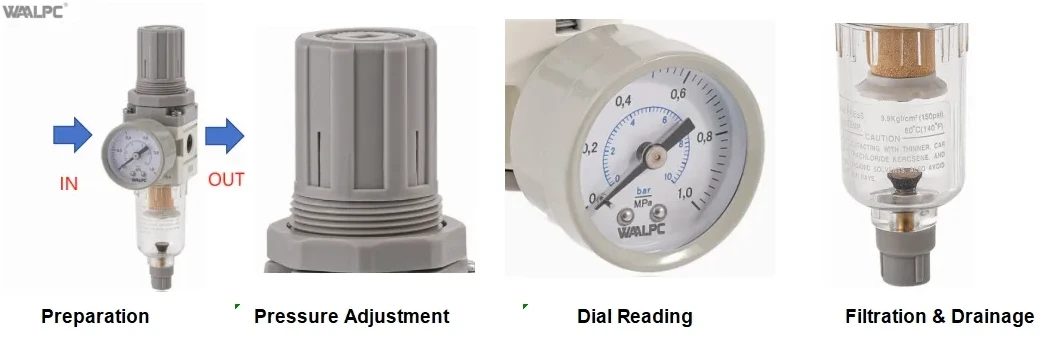

Q1: How does a Pneumatic Filter Regulator work?
A: Air passes through a 5μm filter to remove moisture and dirt, then a regulator stabilizes pressure to a set level – delivering clean, controlled air to downstream equipment.
Q2: Why does my Pneumatic Filter Regulator clog quickly?
A: Heavy upstream contamination or an expired filter element. Install a pre-filter or replace the element more frequently.
Q3: What's the difference between a Pneumatic Filter Regulator and a standard regulator?
A: A standard regulator only controls pressure. A filter regulator combines filtration and regulation in one unit – saving space and ensuring cleaner air.
