Hangzhou Evershine Pneumatic Import & Export Co., Ltd. is one of the leading manufacturers and suppliers of pneumatic air filter in China. With abundant experience, we are committed to providing high quality pneumatic components to global clients. Welcome to wholesale custom made pneumatic air filter from our factory. Also, OEM service is available.

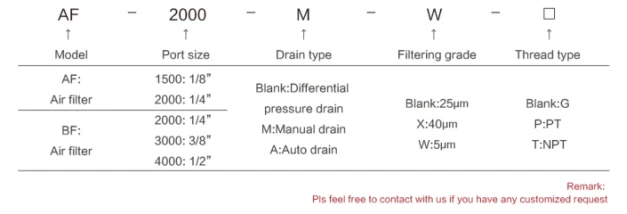

Ordering Code
Data Sheet
|
Type name |
Air Filter |
||||
|
Model |
AF1500 |
AF2000 |
BF2000 |
BF3000 |
BF4000 |
|
Working medium |
Air |
||||
|
Port size |
G1/8, G1/4, G3/8, G1/2 |
||||
|
Grade of Filtration |
5μm,25μm,40μm |
||||
|
Pressure Regulating Range |
0.05~0.85MPa |
||||
|
Max. Operating Pressure |
0.95MPa |
||||
|
Operating Temperature Range |
5~60℃ |
||||
|
Filter Cup Capacity |
A Series15CC |
B Series 60CC |
|||
|
Material |
Housing: aluminium die-cast molding; Container Cup: PE; Protective Cover: iron |
||||
|
Weight |
140g |
330g |
|||
1. Light and compact structure, easy to install and use
2.Grade of filtration: 5μm, 25μm, 40um
FLOWDIAGRAM

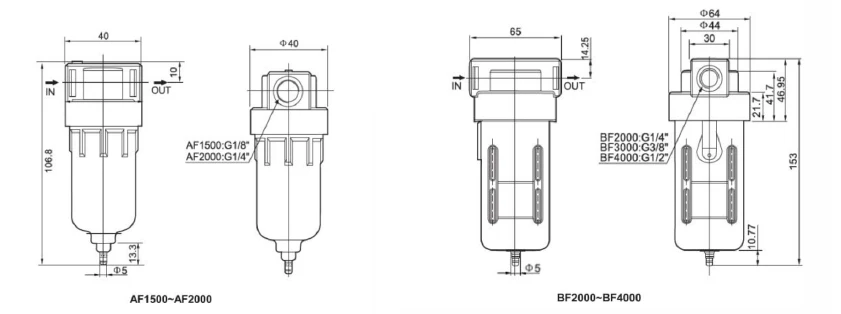

Overall Dimension & Structure
Video
FAQ
1. What is the AF Series filter used for?
The AF Series Pneumatic Air Filter is mainly used to remove moisture, oil and solid impurities from compressed air, helping protect downstream pneumatic components such as valves, cylinders and actuators.
2. What filter element options are available for the AF Series?
The AF Series is available with different filtration grades to meet various compressed-air purification requirements. The appropriate filtration grade should be selected according to the application and required air quality.
3. How often should the AF Series filter be maintained?
Regularly check and drain the accumulated condensate and inspect the filter element. The maintenance frequency depends on air quality, operating conditions and usage. Replace the filter element when it becomes contaminated or causes a noticeable pressure drop.
