Hangzhou Evershine Pneumatic Import & Export Co., Ltd. is one of the leading manufacturers and suppliers of pneumatic air hammer in China. With abundant experience, we are committed to providing high quality pneumatic components to global clients. Welcome to wholesale custom made pneumatic air hammer from our factory. Also, OEM service is available.
Data Sheet
| Model |
Working Pressure (MPa) |
Air consumption (L/time) |
Impact Force | Weight(kg) |

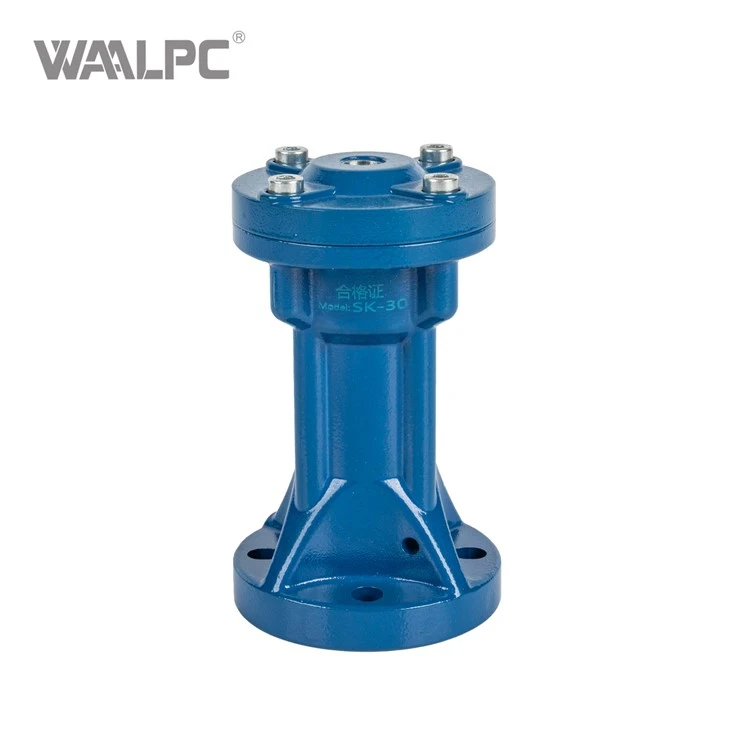

| SK-30 | 0.3~0.7 | 0.028 | 1.0 kg. m/s | 1.1kg |
| SK-40 | 0.3~0.7 | 0.082 | 2.8 kg. m/s | 2.7kg |
| SK-60 | 0.3~0.7 | 0.228 | 7.4 kg. m/s | 6.0kg |
| SK-80 | 0.3~0.7 | 0.60~1.40 | 15.2~23.7 kg. m/s | 11.5kg |
| SK-100 | 0.3~0.7 | 0.98~2.28 | 30.0~46.9 kg. m/s | 15.5kg |
Overall Dimension & Structure
| Model | A | B | C | D | E | F | G | H | IN | OUT |
| SK-30 | 130 | 80 |
67 (optional 60 62) |
14 | 8 | 58 | 34 | 9 | G1/4'' | G1/4'' |
| SK-40 | 158 | 100 |
70 (optional 75 77) |
18 | 11 | 61 | 40 | 13 | G1/4'' | G1/4'' |
| SK-60 | 213 | 140 |
110 (optional 105) |
20 | 12 | 71 | 48 | 15 | G1/4'' | G1/4'' |
| SK-80 | 220 | 170 |
140 (optional 120) |
25 | 16 | 71 | 60 | 17 | G1/4'' | G3/8'' |
| SK-100 | 287 | 210 | 160 | 35 | 20 | 103 | 80 | 22 | G3/8'' | G3/8'' |
Video
FAQ
1. What is the function of a pneumatic air hammer?
It applies periodic heavy impact on silo and hopper walls to break hard material arches and sticky blockages for bulk powder and granules.
2. When should I choose air hammer instead of vibrator?
Choose air hammer for compacted, sticky or heavy bulk materials that continuous vibration cannot loosen.
3. Important installation tips?
Mount on reinforced plate of hopper wall. Avoid direct installation on thin sheet metal to prevent tank deformation.
